AR252 GEARBOX & REGULATOR (AR252-GR-GC1 3/4)

Max GPM 6.5
Max L/Min 24.6
Max PSI 362
MaxBar 25
Inlet 3/4″
Outlet 1/2″ NPT
Max Temp 140° F
HP 1.4
Weight 14
RPM 650

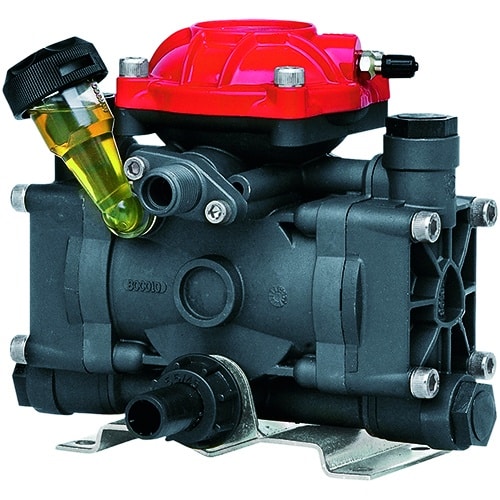

Annovi Reverberi AR252-GR-GCI3/4 650 RPM semi-hydraulic two diaphragm alternating volumetric pump for use in gardening or semi-professional agricultural sector, trolley-mounted in combination with electric motors or internal combustion engines for gardening, and small sprayers for medium-pressure pesticide treatments in gardens, greenhouses, orchards or vineyards.

GR-GCI3/4 version assembled with AR1912 Control Unit and AR1613 Gearbox with 3/4″ Hollow Shaft

Parts in contact with pumped liquids in plastic-coated aluminum and body in aluminum
Diaphragms in NBR, Desmopan or Viton
Seals in NBR or Viton
Die-cast casing with oil-immersed mechanism and clear plastic tank for visual level checking
Pistons with ring for a more efficient “oil cushion” system to protect the diaphragm
New-design diaphragm cut-out system to prevent contact tearing even in heavy-duty operating conditions
Spherical sector profile valves for lower flow resistance and improved volumetric efficiency

Example Uses: Lawn Care, Pest Control & Turf Spraying

Diaphragm Kits:
AR43281 – Blueflex
AR43278 – NBR
AR43279 – Desmopan

Valve Kits:
AR2408 – Valves

O-Ring Kits:
AR2409 – O-Rings

Oil:
AR64516 – Oil
